BOAT LIFTS
A LIFT THAT WORKS WHEN YOU NEED IT
With every lift we construct, our focus is on convenience for our customer and reliability of our product. Gone are the days of manual crank lifts. Instead, all of our hydraulic lifts are remote activated, allowing you to get into the water easier and more often. We also utilize materials to resist corrosion, CNC manufacturing for increased precision, and extensive testing to ensure safety. All of this so your lift can continue to perform for years to come.
OUR LINEUP
TL7000
For boats under 7,000 lbs.
LIFT SPECIFICATIONS
Weight Capacity
Maximum Beam
Lifting Height
Min. Water Depth
Overall Width
# of Cylinders
Bunk Length
7,000 lbs
120"
60"
9" + hull draft
138.5"
2
144"
TL9000
For boats under 9,000 lbs.
LIFT SPECIFICATIONS
Weight Capacity
Maximum Beam
Lifting Height
Min. Water Depth
Overall Width
# of Cylinders
Bunk Length
9,000 lbs
120"
60"
9" + hull draft
138.5"
2
144"
TL12000
For boats under 12,000 lbs.
LIFT SPECIFICATIONS
Weight Capacity
Maximum Beam
Lifting Height
Min. Water Depth
Overall Width
# of Cylinders
Bunk Length
12,000 lbs
132"
60"
12" + hull draft
150.5"
4
168"
TL15000
For boats under 15,000 lbs.
LIFT SPECIFICATIONS
Weight Capacity
Maximum Beam
Lifting Height
Min. Water Depth
Overall Width
# of Cylinders
Bunk Length
15,000 lbs
132"
60"
12" + hull draf
150.5"
4
216"
TL18000
For boats under 18,000 lbs.
LIFT SPECIFICATIONS
Weight Capacity
Maximum Beam
Lifting Height
Min. Water Depth
Overall Width
# of Cylinders
Bunk Length
18,000 lbs
144"
60"
14" + hull draft
150.5"
4
216"
TL28000
For boats under 28,000 lbs.
LIFT SPECIFICATIONS
Weight Capacity
Maximum Beam
Lifting Height
Min. Water Depth
Overall Width
# of Cylinders
Bunk Length
28,000 lbs
144"
60"
16" + hull draft
162.5"
6
Custom
WHAT GOES INTO A TONKA LIFT
02
CONTROL BOX
Our control box protects all sensitive electrical components in a sleek waterproof design.
CONTROL BOX FEATURES:
Fully-sealed & lockable
Waterproof
Vented enclosure for heat regulation
Premium quality fiberglass construction
04
FRAME
Our lift frames are built to stand up to years of use.
FRAME FEATURES:
Aluminum construction
Stainless steel hardware
All parts are machined on high-precision CNC machines
State-of-the-art welding
Stainless steel and silicon bronze hardware
Structure lock CNC framing technology
01
REMOTE
Everything starts with the push of a button.
REMOTE FEATURES:
Waterproof
Military-grade
Long battery life
Easy sync
Long-range
Slim profile
03

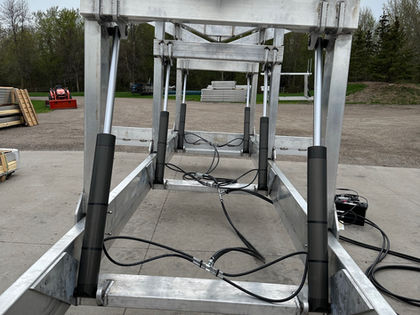

CYLINDERS
Our hydraulic cylinders have been custom designed from the ground up to ensure safe, reliable, and smooth movement.
HYDRAULIC CYLINDER FEATURES:
Eco-friendly, biodegradable hydraulic fluid
Chrome-plated stainless steel rods
Cushion-control stopping
Aluminum housing
Hard-coat anodizing
Hard plastic shaft umbrella wipers
Dual U seals for added environmental and hydraulic system protection

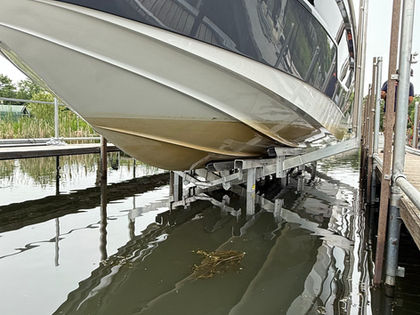

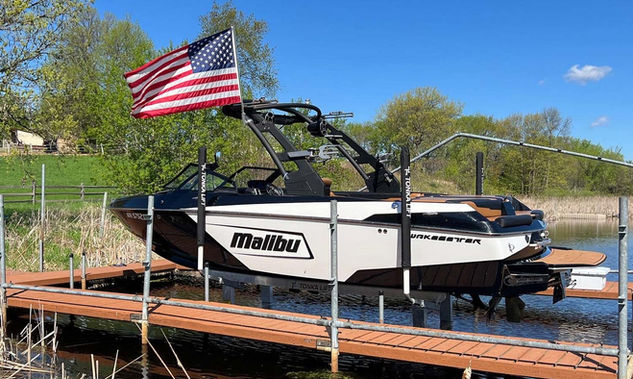

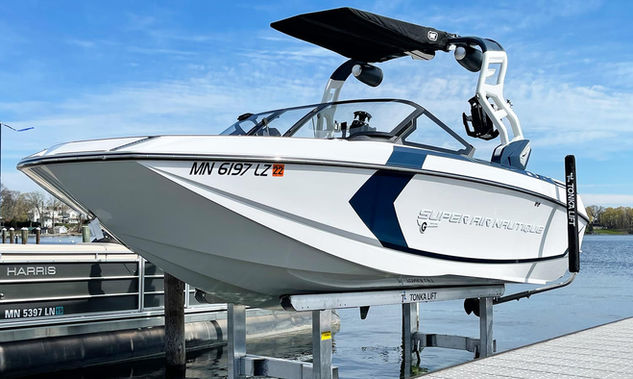

OUR LIFTS IN ACTION
View our lifts to see how others have achieved effortless access to the water.
LIFT ACCESSORIES
POST-STYLE GUIDE-ONS
Provide visual assistance to ensure centered mooring on the lift. Options for front and rear mounting and adjustable to accommodate all watercraft beams.
SOLAR PANELS
Environmentally-conscious and cost-effective off-grid charging of your lift battery. Sleek in design, ensuring your lift battery remains charged.
NOCO BATTERY CHARGERS
Rugged, waterproof, on-board battery chargers providing constant charge. Available in 1-bank and 2-bank for use where electrical service is present on the dock.
MUD FOOT PLATES
Larger foot plates designed specifically to help keep your lift from sinking or becoming out-of-level in less than ideal lake bottoms.
